VIMMS Vibration Monitor

NS8141-compliant wireless vibration monitoring for blasting, construction, and infrastructure projects.

Get a quote Download datasheet
VIMMS Vibration Monitor

Overview

The VIMMS Vibration Monitor is a rugged, wireless triaxial vibration sensor designed for demanding field environments. It measures ground vibrations in compliance with NS8141, the Norwegian standard for vibration measurement in construction and blasting operations. Data is transmitted in real-time to the ALARMS cloud platform, where you can monitor, configure alerts, and generate compliance reports — all from your browser.

Gallery

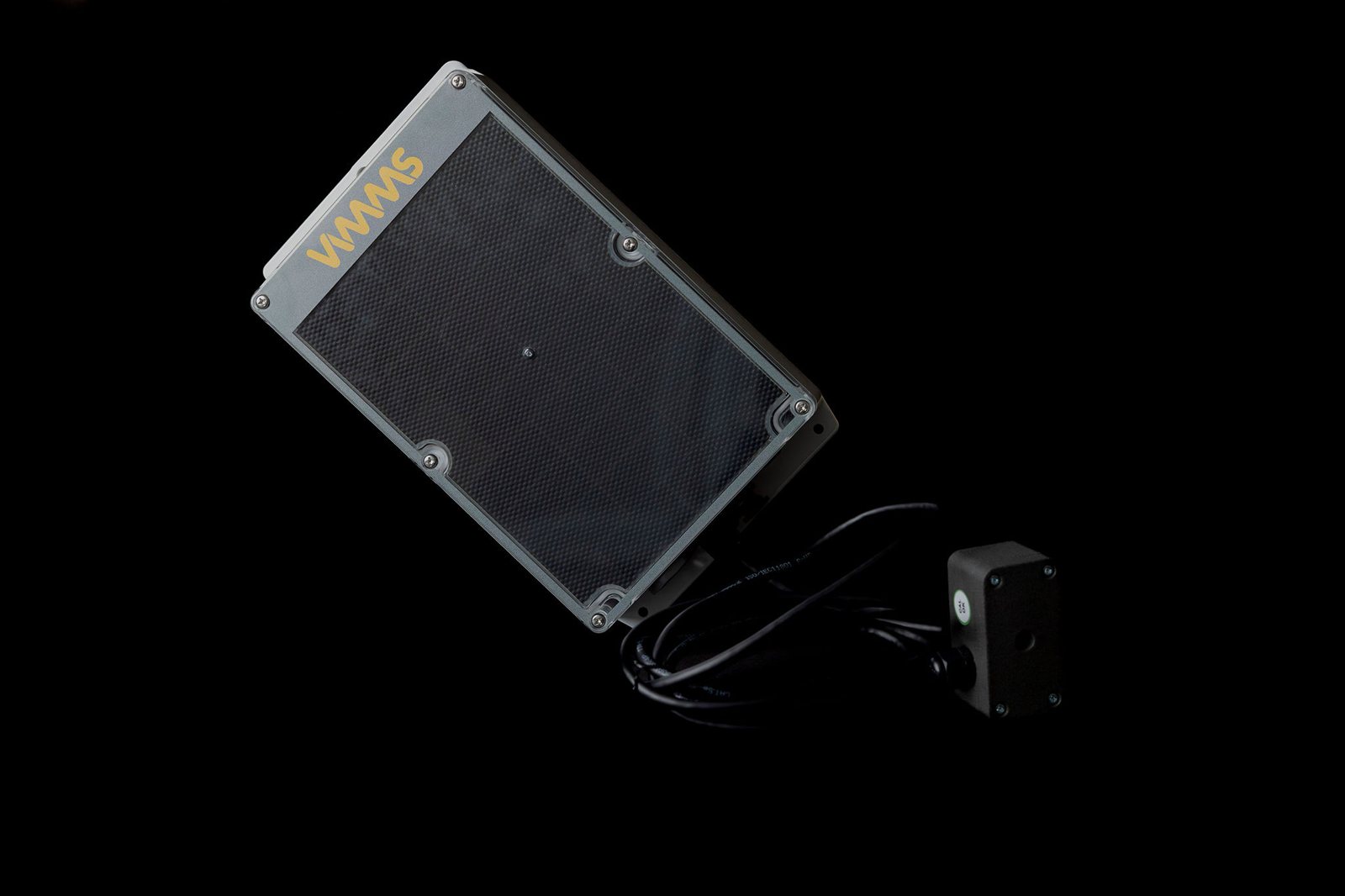

VIMMS Vibration Monitor with geophone sensor, angled view

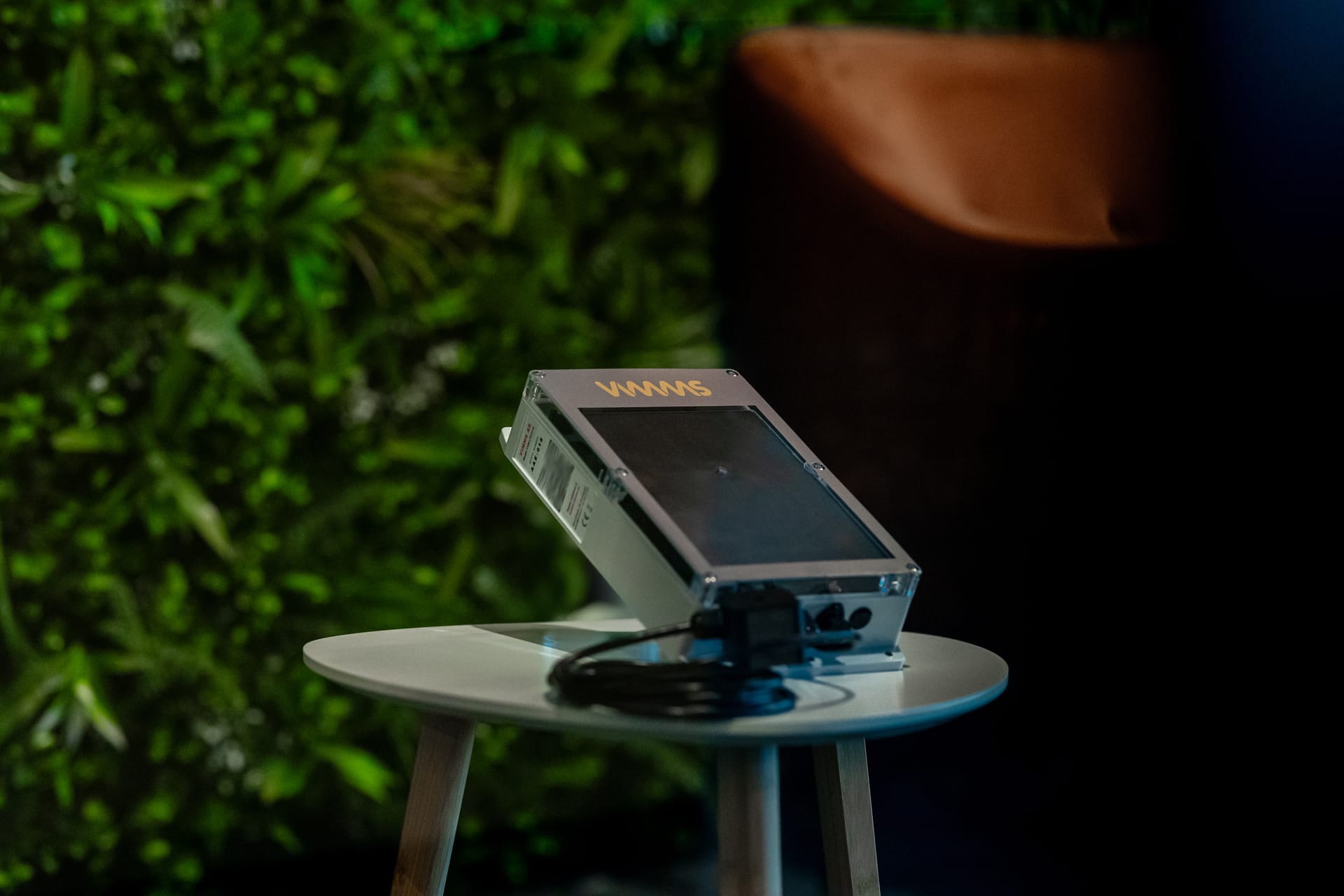

VIMMS Vibration Monitor on display

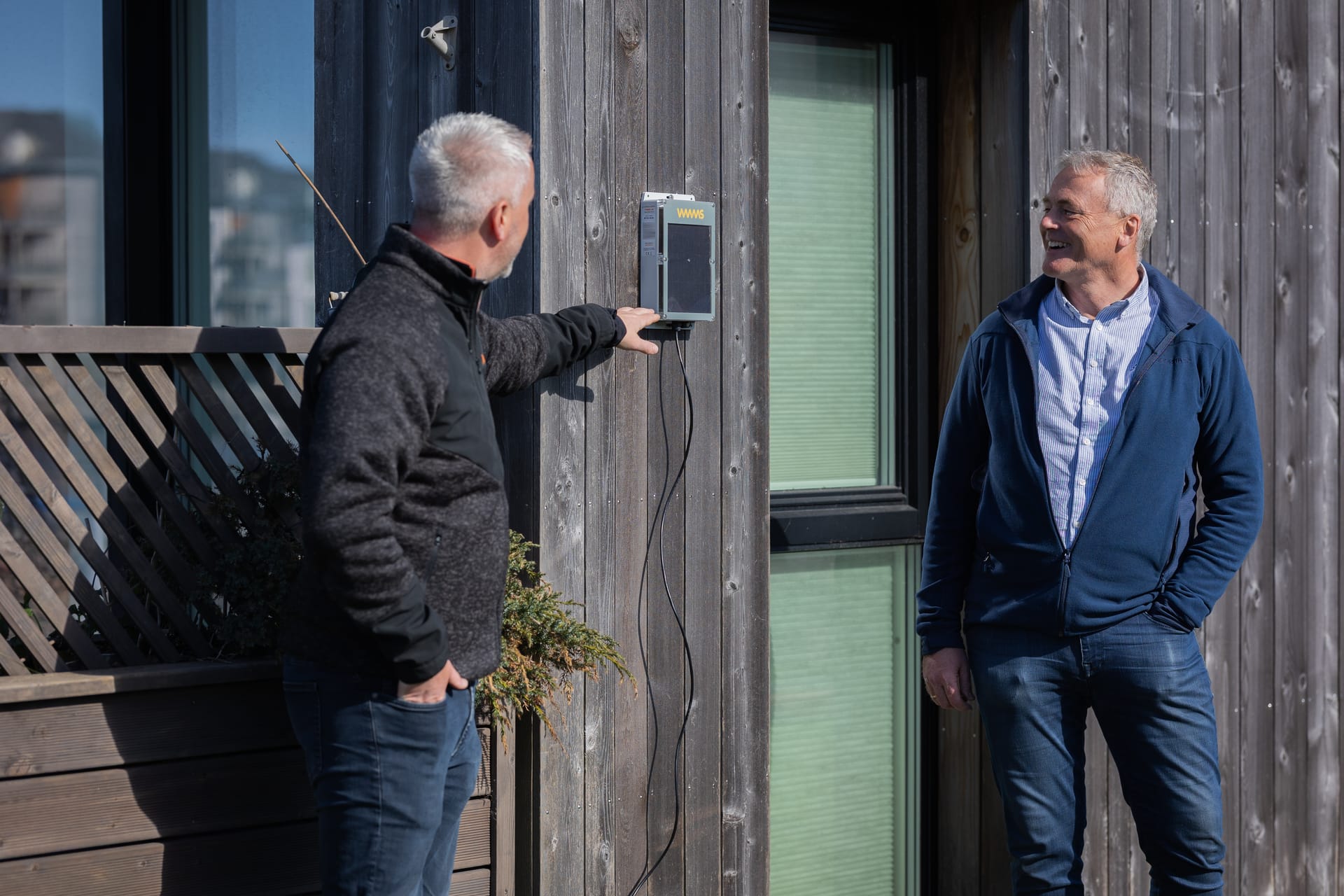

VIMMS Vibration Monitor being installed on building wall

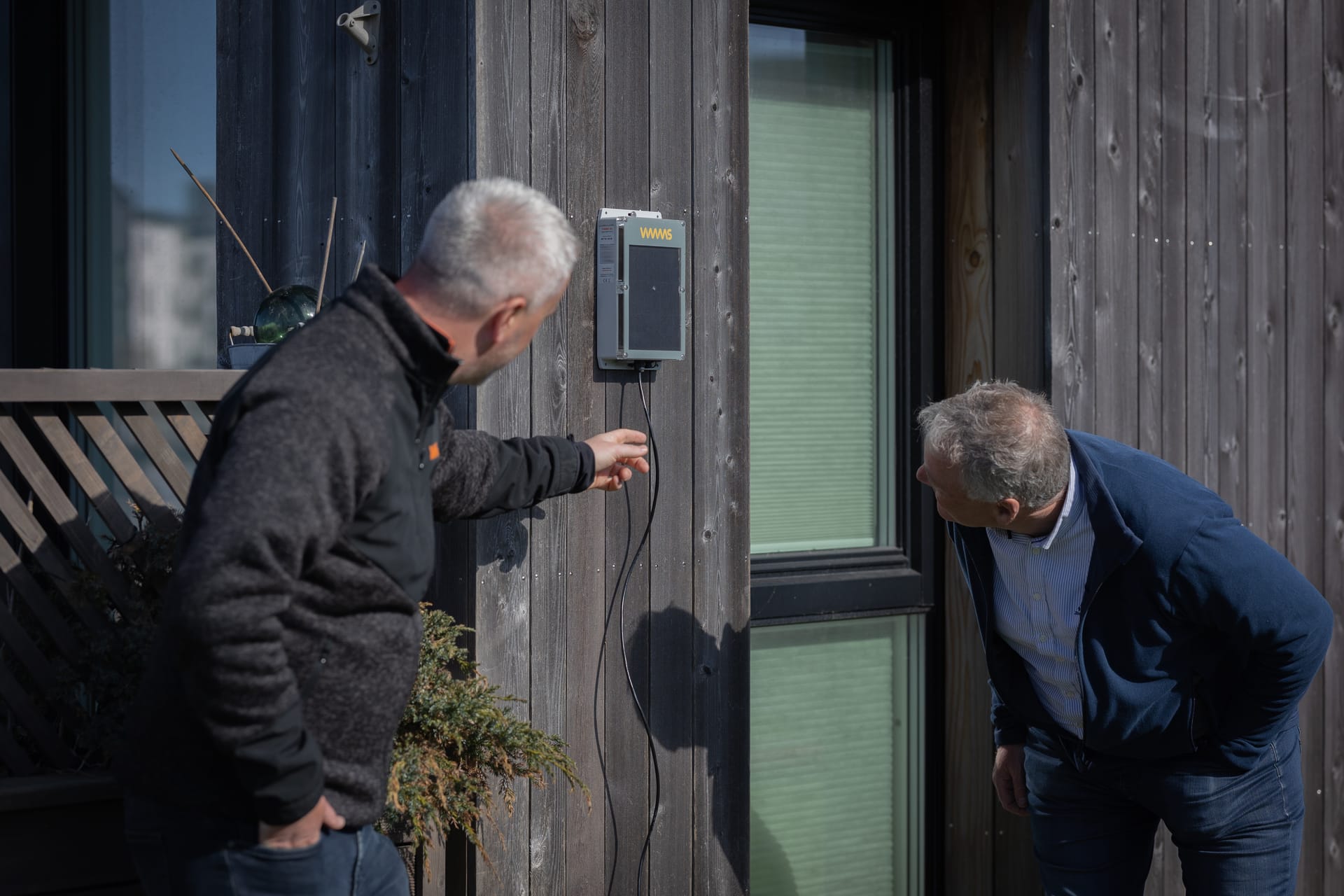

Demonstrating VIMMS Vibration Monitor installation on building wall
VIMMS team at construction site with vibration monitor installed

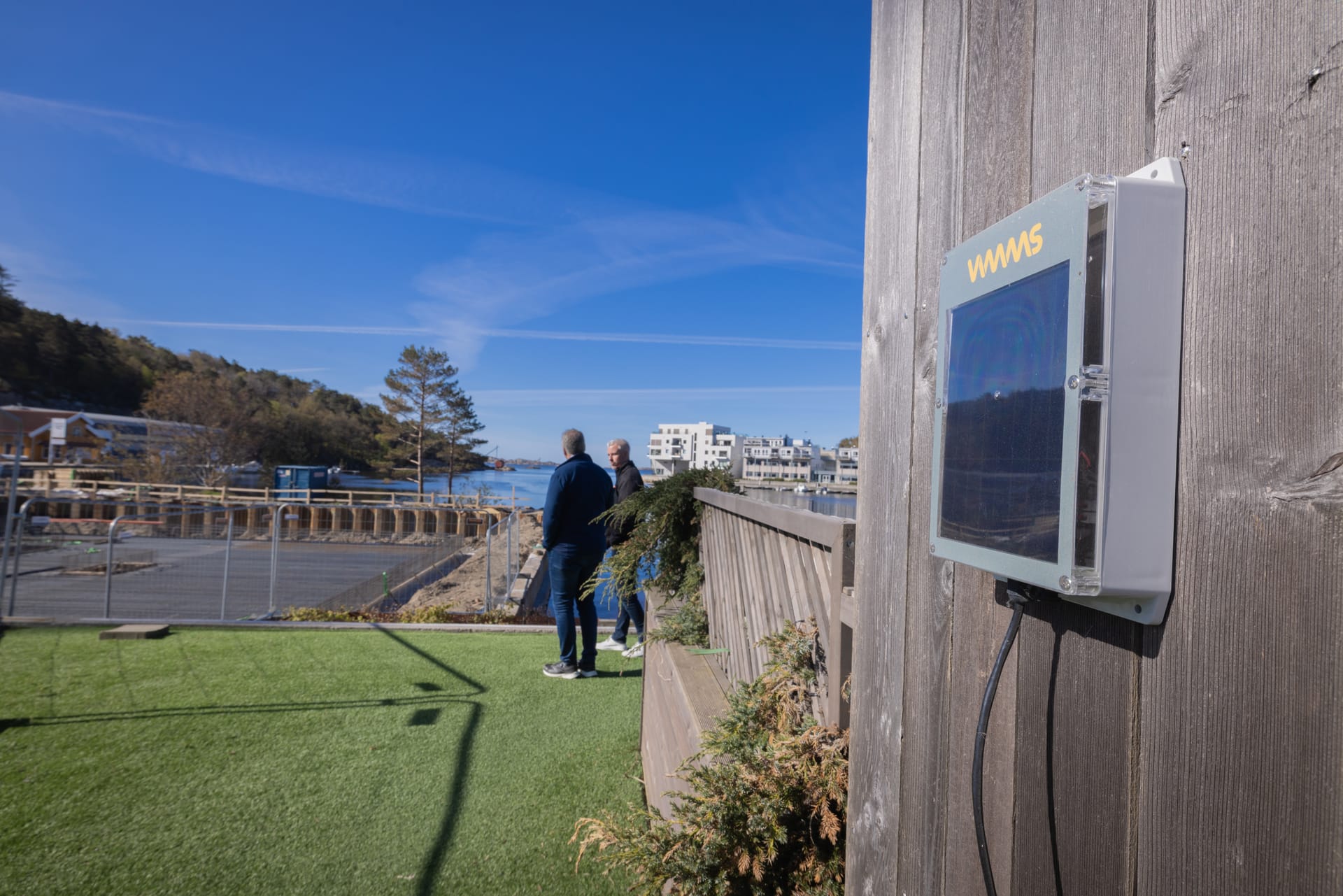

VIMMS Vibration Monitor installed at construction site near coast

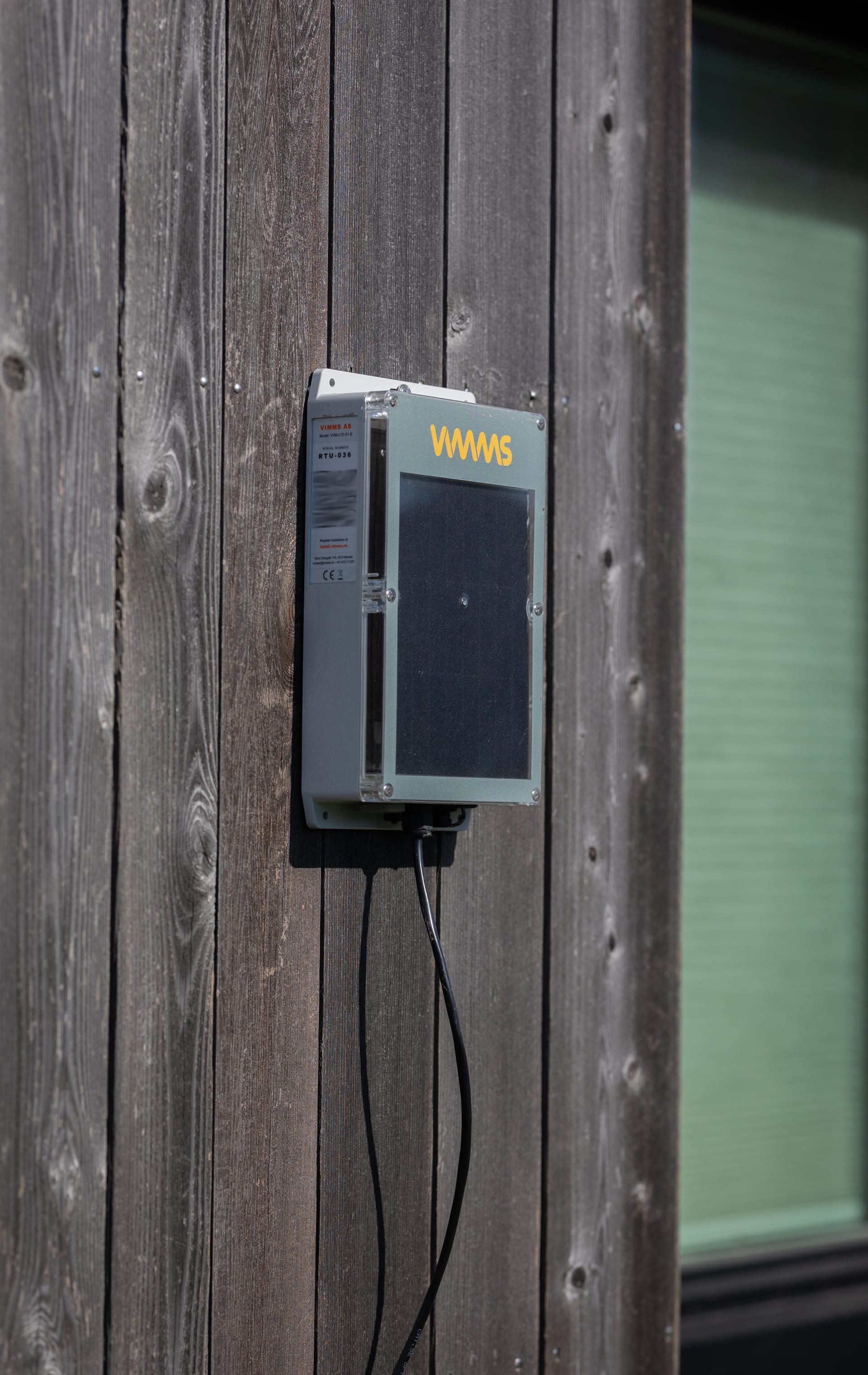

VIMMS Vibration Monitor mounted on wooden wall with solar panel

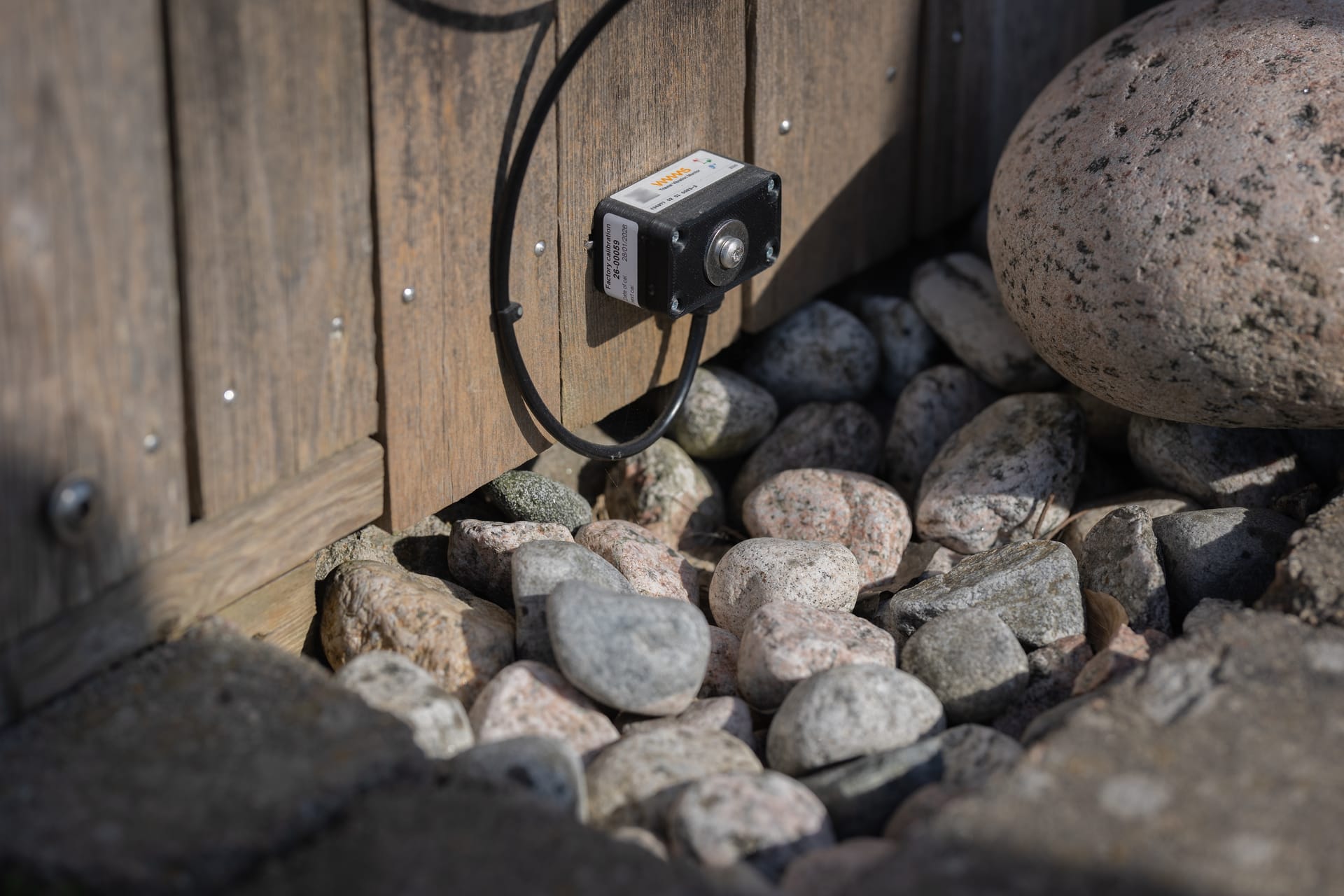

VIMMS geophone sensor installed at ground level among rocks
VIMMS Vibration Monitor - back panel with connectors

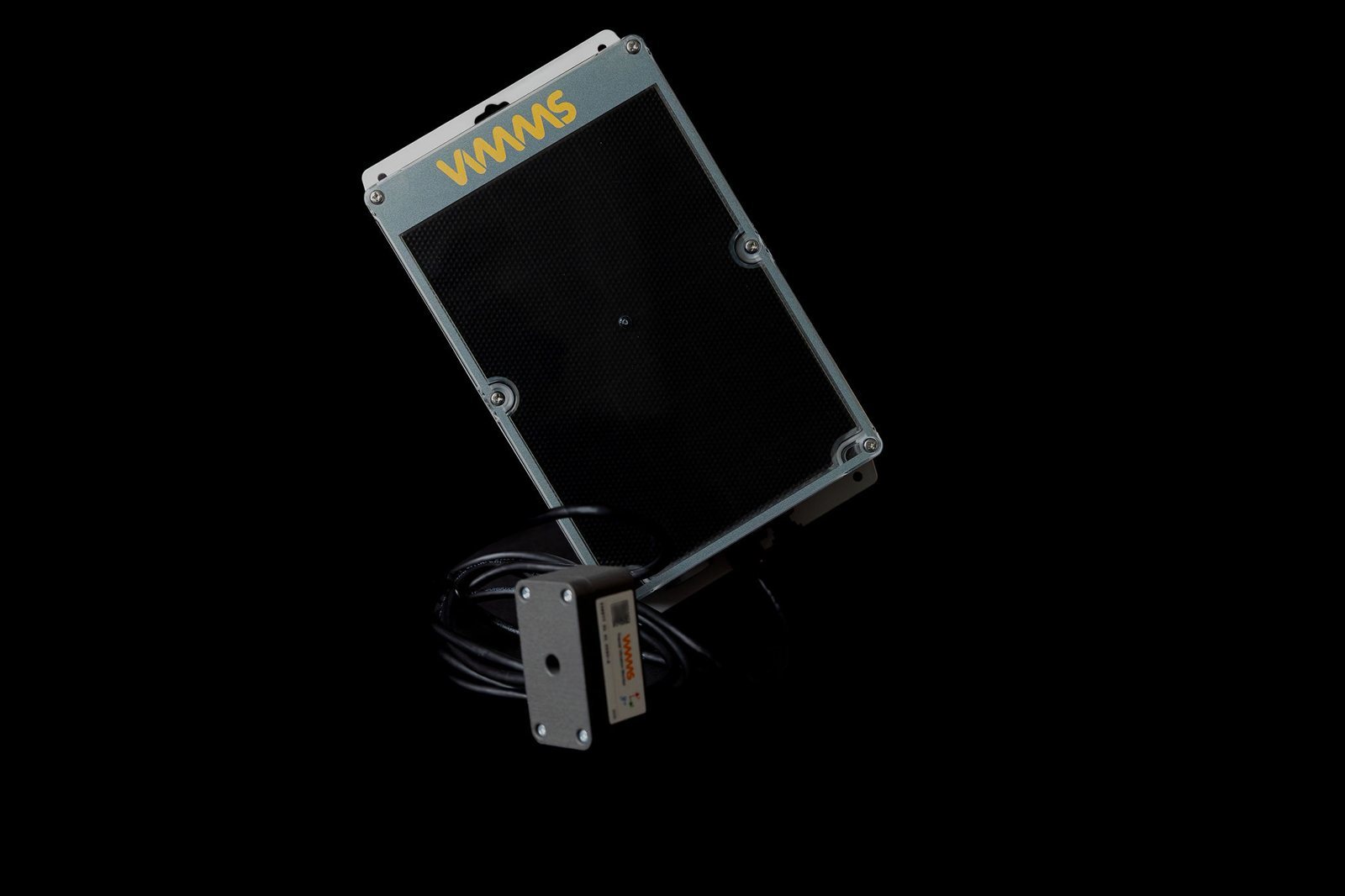

VIMMS Vibration Monitor with geophone sensor, portrait view

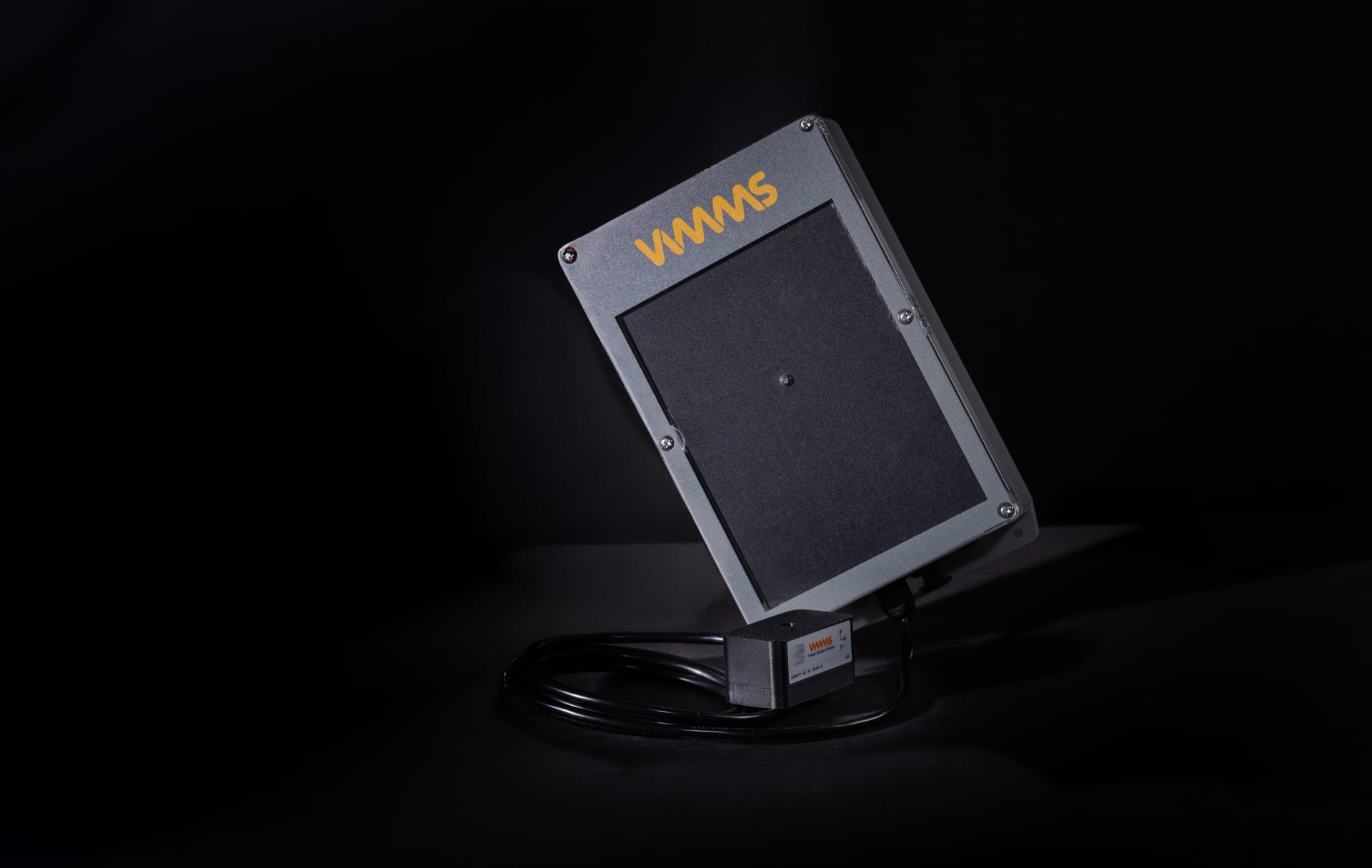

VIMMS Vibration Monitor - front view with geophone sensor

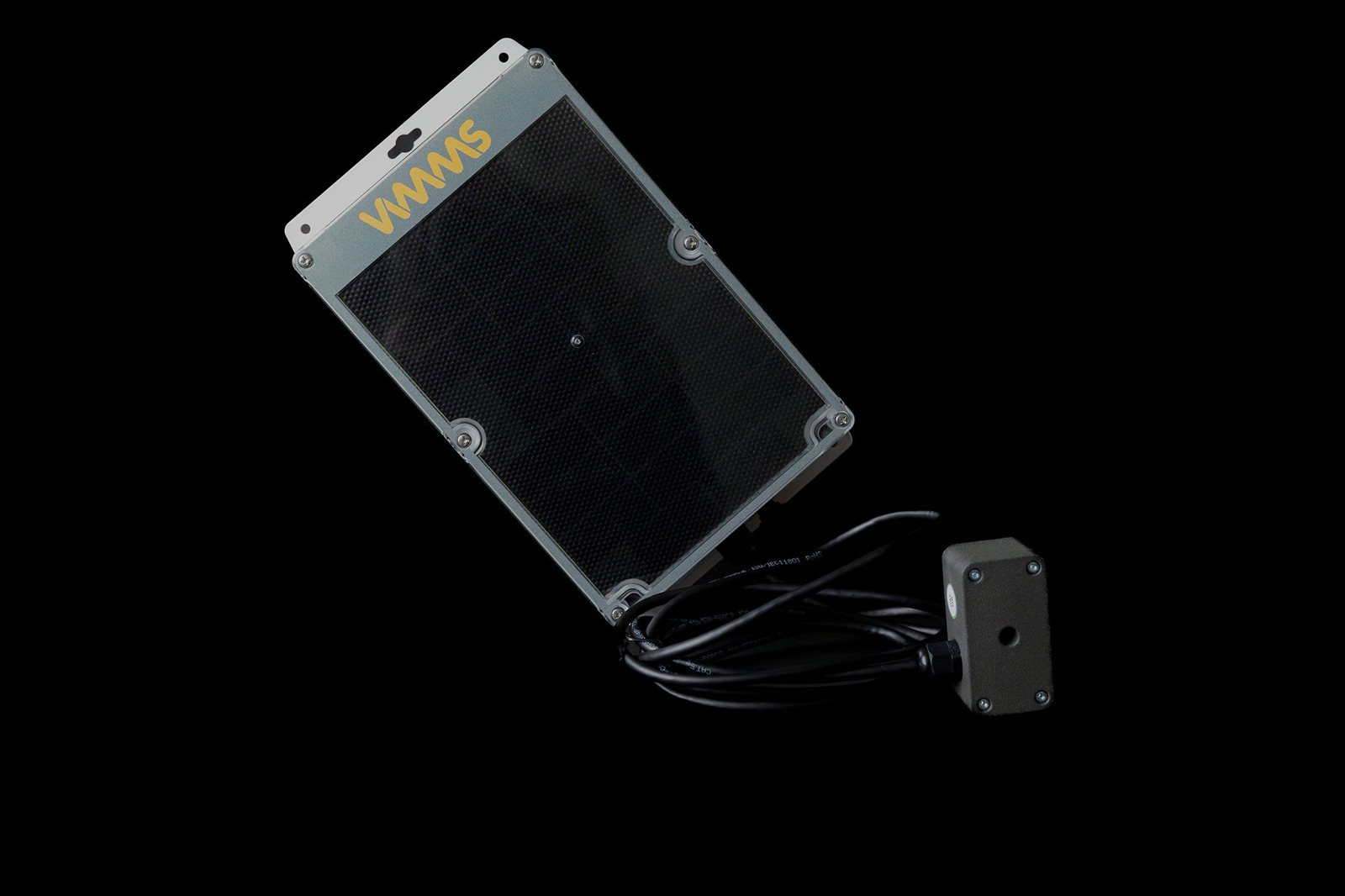

VIMMS Vibration Monitor with geophone sensor, wide angled view

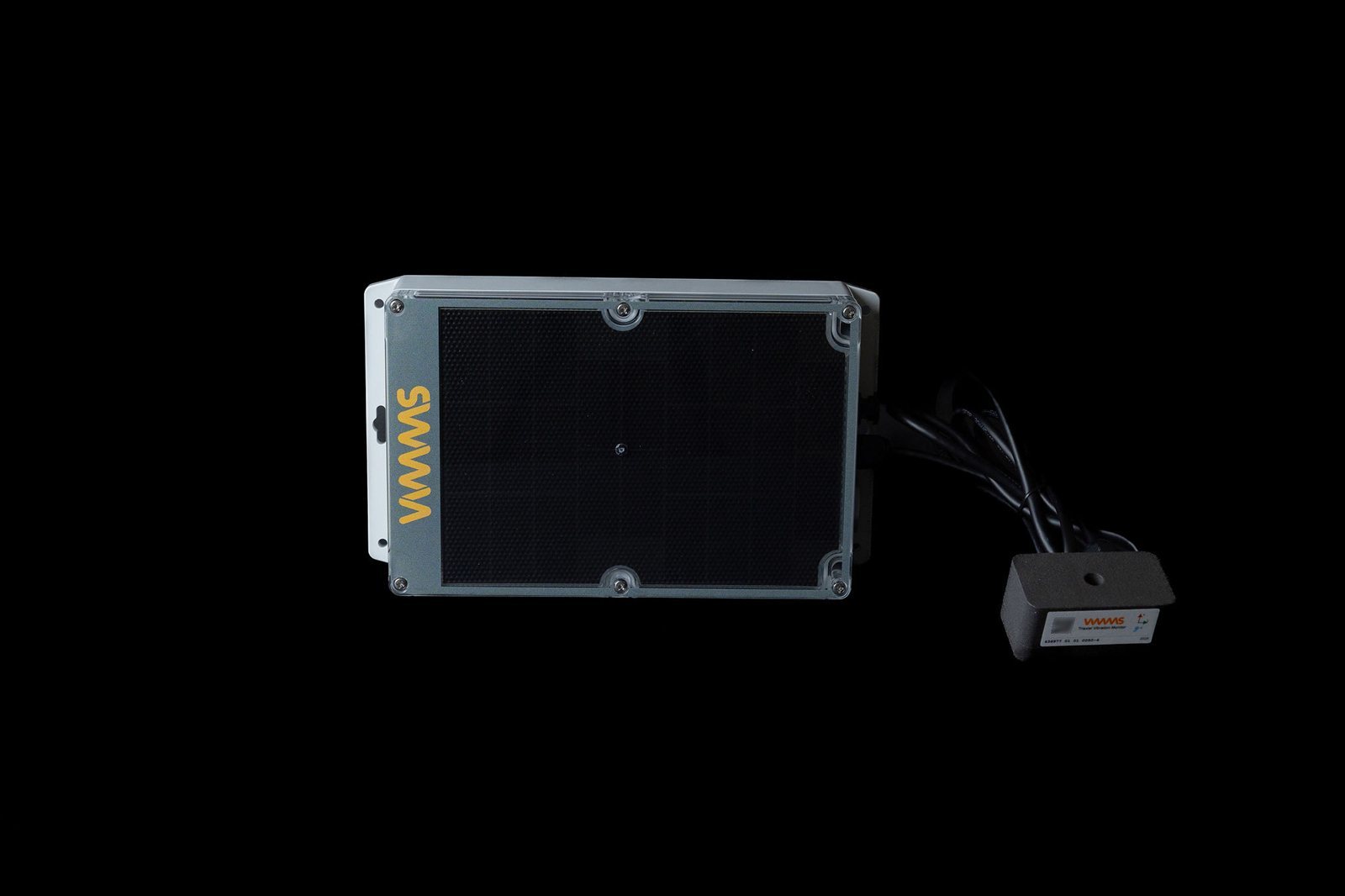

VIMMS Vibration Monitor with geophone sensor, front view

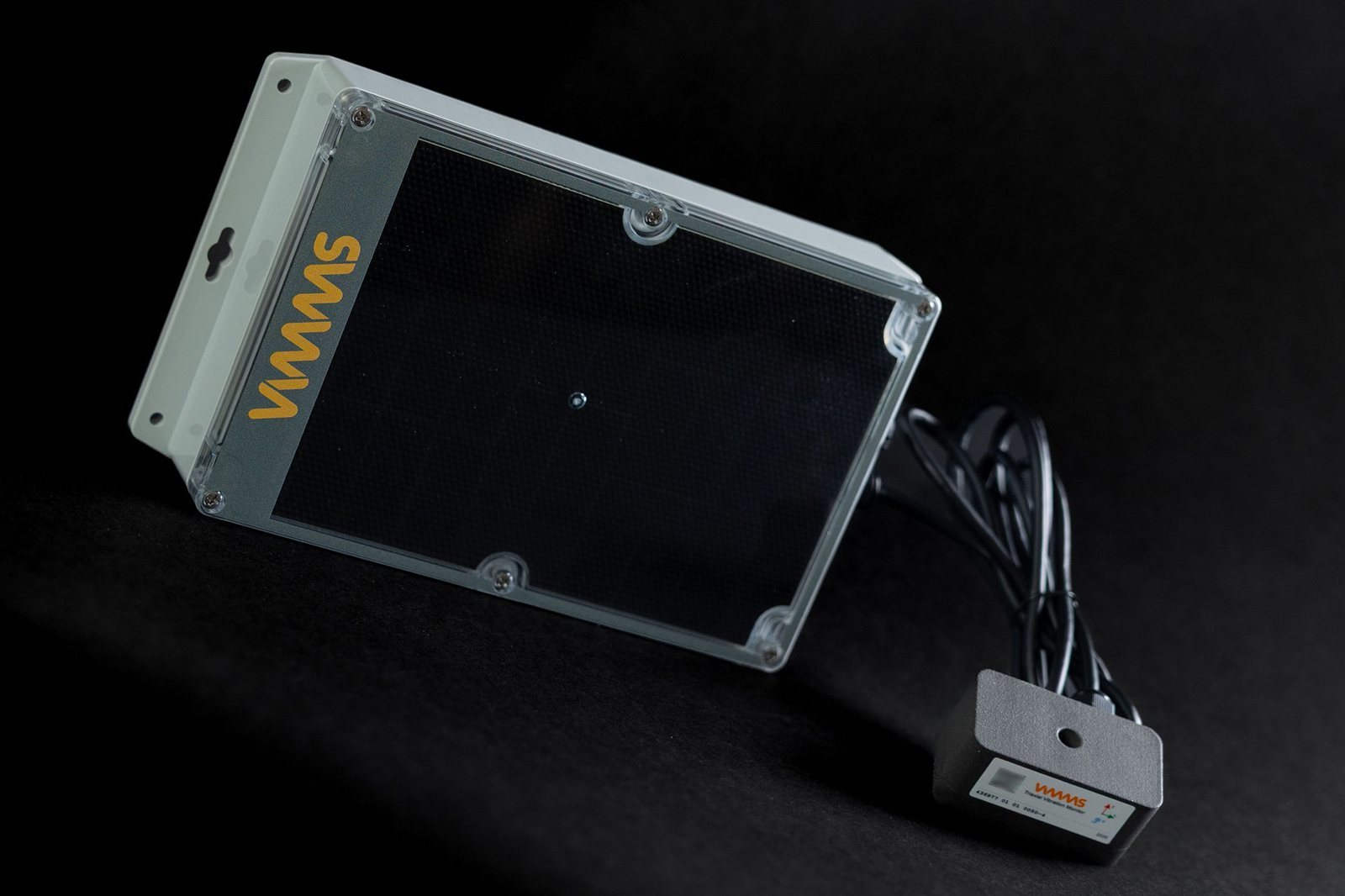

VIMMS Vibration Monitor with geophone sensor, angled front view

Technical Specifications

Standards
NS 8141 / SS 4604866
Measurement axes
Single-axis or triaxial — selected in software
Sensor
External MEMS accelerometer, 2 m cable
Frequency range
1–400 Hz
PPV
Calibrated up to 250 mm/s; higher values recorded outside calibrated range
Connectivity
LTE-M, GPS positioning
Platform integration
ALARMS (PDF and API) + BlastManager
Power
Solar panel and internal battery, external 12 V charging — up to 3 months without light
Operating temperature
−20 °C to +60 °C
Enclosure
IP65
Dimensions
Logger 204 × 133 × 41 mm, sensor 63 × 36 × 33 mm
Weight
Approx. 1.2 kg total
Calibration
Certificate per sensor serial number, recommended every 2 years
CE / Directives
CE marked; RED / EMC, RoHS / REACH

Key Features

Real-Time Monitoring

Live vibration data streamed to your dashboard. See PPV, frequency, and waveform — as it happens.

Configurable Alerts

Set thresholds per project. Get notified by SMS or email the instant a measurement exceeds limits.

Automated Reporting

Generate NS 8141 reports with one click, as PDF or via API. Sensor, logger and calibration IDs, filter profile and data quality are documented.

BlastManager Integration

Seamless data exchange with BlastManager for coordinated blast event logging and documentation.

Built for the Field

IP65 enclosure, −20 °C to +60 °C, and solar charging with up to 3 months of runtime without light.

Cloud-Based Platform

Access your data from anywhere via the ALARMS platform. No local software installation required.

Pricing & Availability

Available for purchase, long-term lease, or project rental. Contact us for a tailored quote.

Most popular

Long-term lease

Predictable monthly cost with support and updates.

Project rental

Short-term rental for single projects. No commitment.

Purchase

Own the unit. Best for permanent installations.
